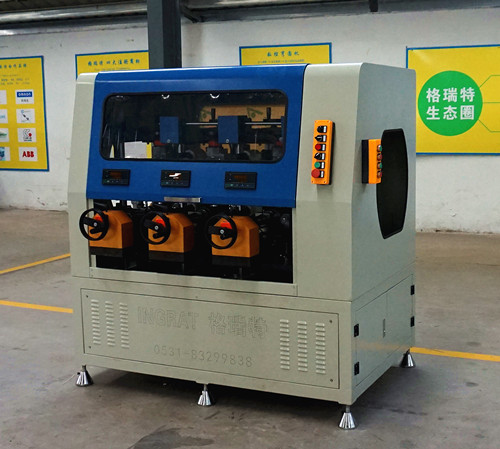

GYJ-01 Rolling Machine
  • GYJ-01 Rolling Machine

GYJ-01 Rolling Machine

Category:Thermal Break Assembly Machine

Product specifications:

Details
Applications:
This thermal break aluminum profile rolling machine is to combine thermal barrier strip or plastic profile with aluminum profiles to make thermal break aluminum profile. Hardened rolling discs are used to press the knurled profile and thermal barrier strip or plastic profile together, to make a composite profile that has great insulation effect.

Features:
1, Six sets of hardened rolling discs and rubber roller are electrically controlled for fast change of profiles.
2, Six sets of rolling discs controlled by separate driving force guarantee stable rolling, high speed, and high efficiency.
3, Vertical and horizontal distance between each pair of rolling discs is adjustable for different sizes of profiles.

4, Step-less speed regulation. Taiwan HIWIN linear rail, Schneider electrical appliance, and precision screws are adopted.


Technical data:

Model

GYJ-01

Power supply

380V/50Hz

Total power

4.73Kw

Two-axis electric control

Rolling discs and upper rubber rollers

Rolling disc diameter

240mm

Two rolling discs(one pair) distance

0-50mm

Rolling disc height regulating range

0-80mm

Max rolled section

170x230mm (WxH)

Rolling speed

0-60m/min

Overall dimension

1550x1270x1560mm

Weight

 thermal break machine

1300kg




thermal break machine
