Application:
Use two sets roller for recombination of profiles with the inserted thermal barrier strips through rotating;achieve tight combination for the profiles with strips.

1  Adjustable Electric control four group of cutters,  can be quickly replaced with different profiles;
2.Four rollers controlled by separate driving force guarantee stable rolling.
3.Through the gasket to adjust the space between roller wheels .
Technical data:
Power supply: 380v/50Hz
Total power: 3.55Kw
Rolling-disc diameter: 200mm
The whole height of three sets rolling-discs: 0-60mm
Feeding speed:0-30m/min
Max profile processing size: W*H=220mm*250mm
Overall dimension: L*W*H=1150mm*1050mm*1550mm

Weight: 800Kg

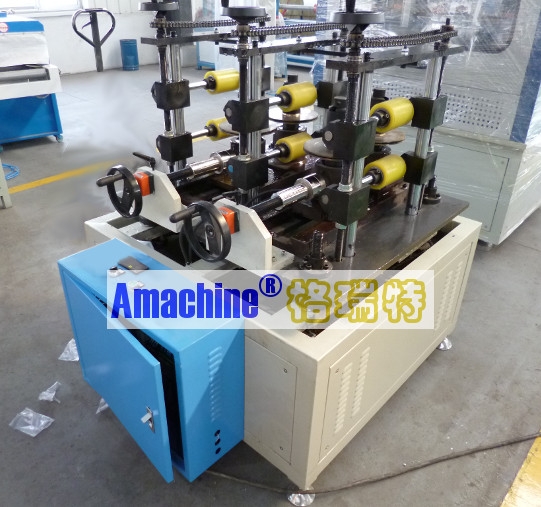

thermal break machine
