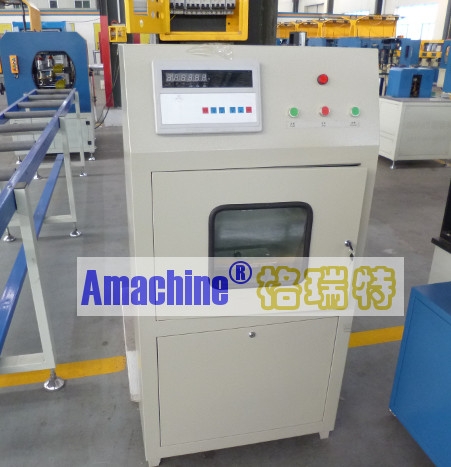

This shear force testing instrument is to determine the horizontal shear force of a 100mm thermal break profile sample, to see if it’s eligible. The pressure on test sample will be collected by sensor and sent to high-precision meter after being converted to voltage signal. The peak value will be stored and shown on the screen.
Features:
1, Equipped with high precision load sensor .
2, Electric measurement and digital display.
Technical data:
|
Model |
JQJ-01 |
|
Max load on sensor |
1000kg (10kN) |
|
Measuring tolerance |
2% |
|
Pushing speed |
50+5mm/min |
|
Power supply |
380V/50Hz |
|
Total power |
370W |
|
Overall dimension |
750x350x1470mm |
|
Weight |
100Kg |
